RA-01 F
Certifications
Our products comply with the safety requirements of the directives of the European Commission.
Technical Data
- Name
- RA-01 F
- Type
- Automatic Silkscreen
- Description
- Automatic silkscreen balloon printing machine - 2 colours on 2 sides simultaneously with a very good print log.With special accessories it can print also punchballs and 5 inch.
ADVANTAGES:
- high printing speed
- easy registration
- minimum waste of energy
- duplex printing process
- automatic drying system
- integration with automatic feeder RF350
Built according to EC Safety Standards and Regulations.
Adding a monitor and some other accessories you can check the printing quality while you're loading balloons on the printing machine.
- Availability
- On request
- Print colors
- 1, 2

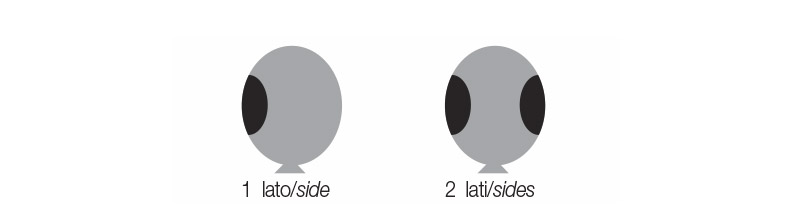

- Sides Printing
- From 1 to 2 sides
- Productivity per hour
- 1200-1500 pieces per hour
- Measures balloons
-
- 10, 12, 14 inch standard round balloons
- Heart shaped balloons 5 and 12 inch
- punchballs
- Size
- cm 240 x 190 x 170 h
- Weight
- 370 kg
- Drying
- Hot air - included
- Comments
- INFLATED BALLOON PRINTING PROCESS
VOLTAGE AS YOU NEED
- Air pressure
- 8 bar
- Air consumption
- 160 litres per minute
- Compressor
- Not included
With this machine can print …
Spare parts

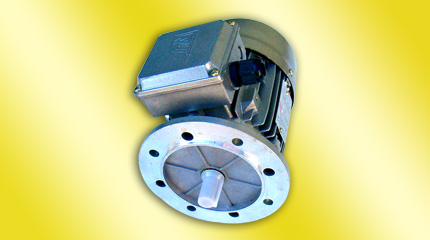

RF25-RA-01
DescriptionMotor

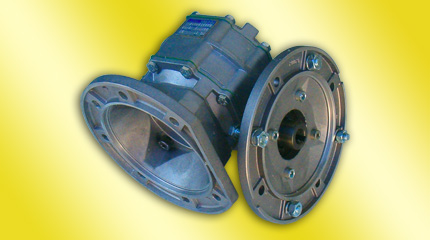

RF26-RA-01
DescriptionReducer

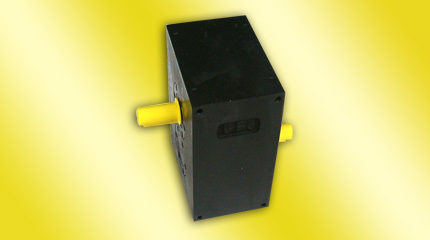

RF27-RA-01
DescriptionTransmissione box

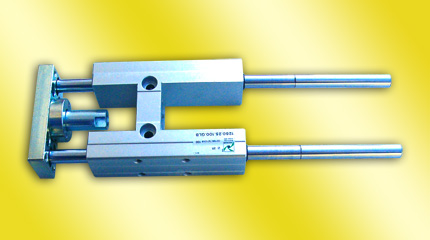

RF32-RA-01
DescriptionSmall guide

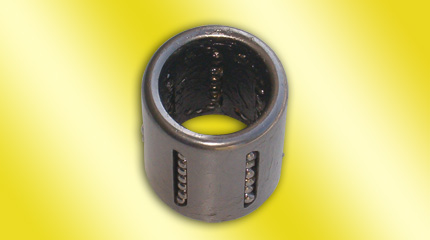

RF33-RA-01
DescriptionSliding Muff

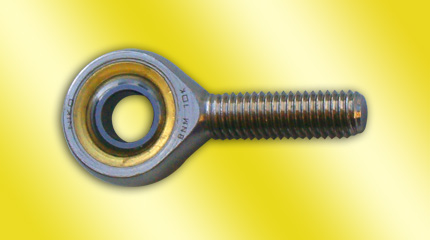

RF34-RA-01
DescriptionArticulated Head Ø 10

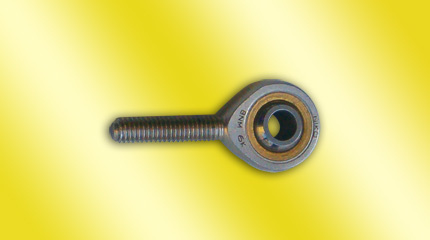

RF35-RA-01
DescriptionArticulated Head Ø 6

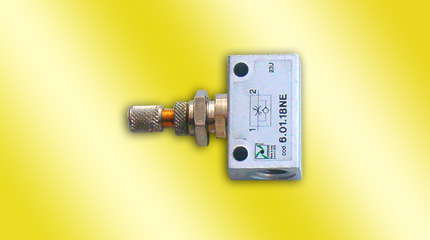

RF36-RA-01
DescriptionRegolator 1/8
RF36-RA-01
DescriptionRegolator 1/4

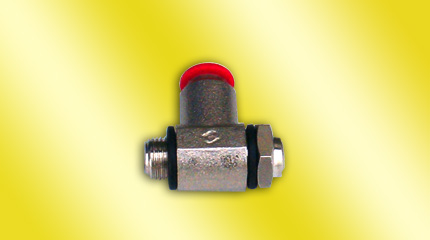

RF37-RA-01
DescriptionRegolator 1/8 - 6
RF37-RA-01
DescriptionRegolatore 1/4 - 8

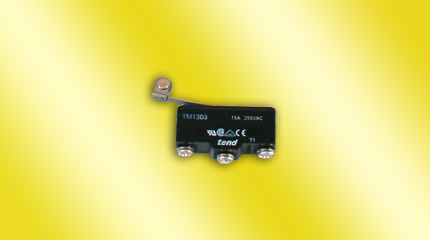

RF38-RA-01
DescriptionMicrocontact

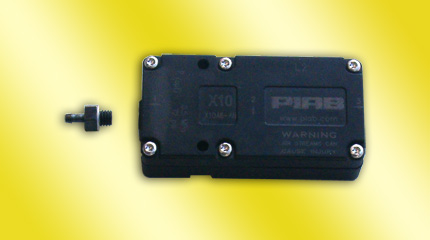

RF39-RA-01
DescriptionPump for empty

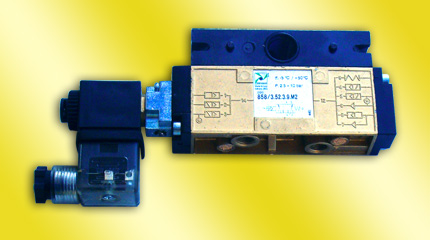

RF40-RA-01
DescriptionEletric valve for cylinder

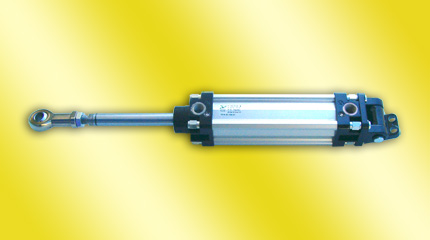

RF42-RA-01
DescriptionØ 32 Stroke 100

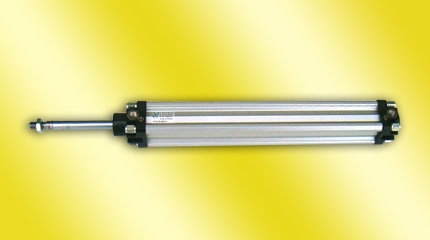

RF43-RA-01
DescriptionØ 32 Stroke 250

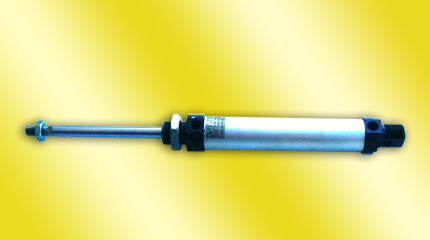

RF44-RA-01
DescriptionCylinder for balloon blocking

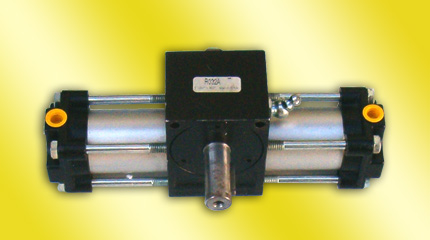

RF45-RA-01
DescriptionTurning Unit 180°

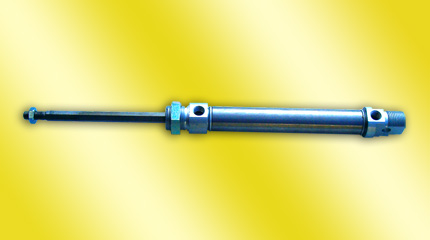

RF46-RA-01
DescriptionClamp cylinder

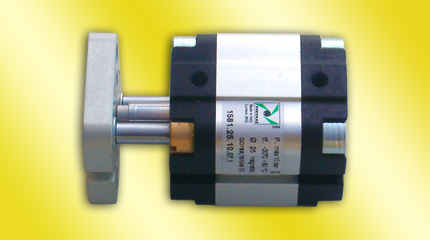

RF47-RA-01
DescriptionPiston for scraper movement

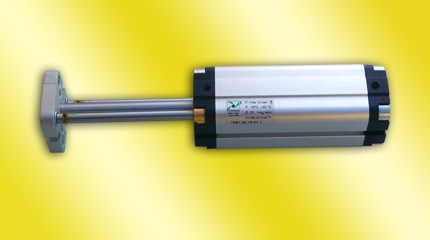

RF48-RA-01
DescriptionMovement piston

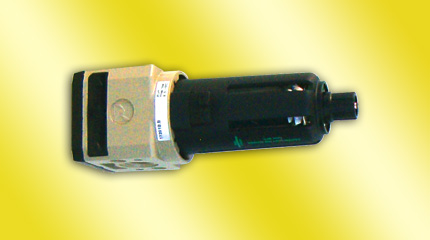

RF49-RA-01
DescriptionFilter 3/8

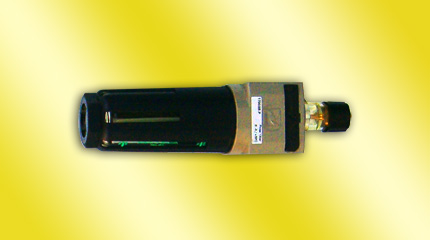

RF50-RA-01
DescriptionLubricator

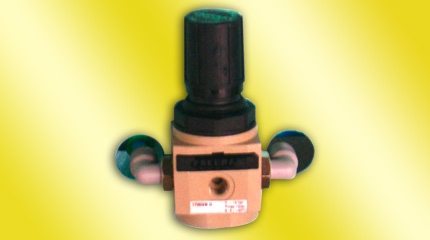

RF51-RA-01
DescriptionRegolator 1/4

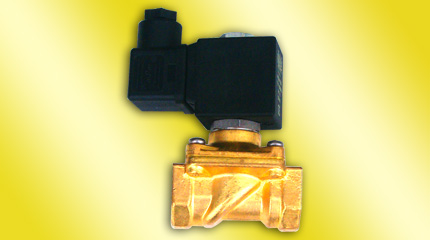

RF52-RA-01
DescriptionEletric valve for inflation

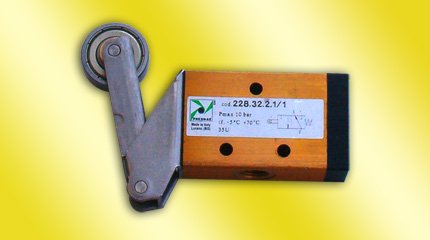

RF53-RA-01
Description3-ways valve 1/8

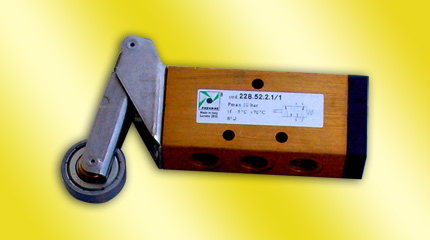

RF54-RA-01
Description5-ways valve 1/8

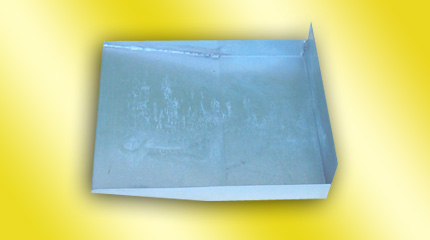

RF55-RA-01
DescriptionContainer

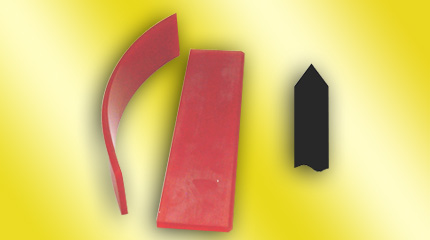

RF23-RA-01
DescriptionStraight scraper

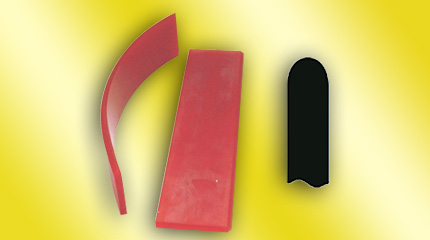

RF24-RA-01
DescriptionRound scraper

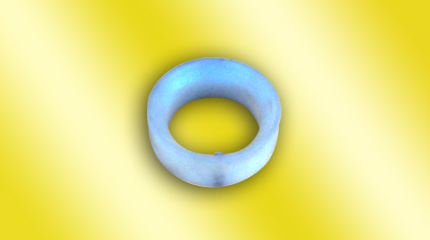

RF57-RA-01
DescriptionNylon balloon guide

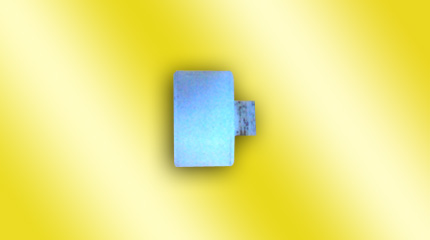

RF58-RA-01
DescriptionSpacer for balloon hook

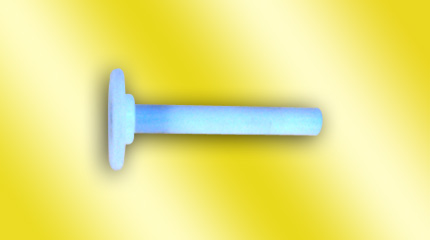

RF59-RA-01
DescriptionBalloon blocker

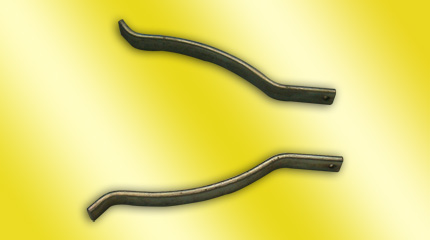

RF60-RA-01
DescriptionBalloon guide

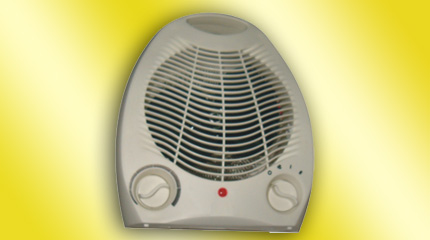

FAN
DescriptionHot air drying fan
