RA-01 B
Certifications
Our products comply with the safety requirements of the directives of the European Commission.
Technical Data
- Name
- RA-01 B
- Type
- Automatic Silkscreen
- Description
- Automatic silkscreen balloon
printing machine - 2 colours on 1st side, 1 colour on 2nd sides
ADVANTAGES:
- high printing speed
- easy registration
- minimum waste of energy
- duplex printing process
- automatic drying system
- integration with automatic feeder RF-350
Built according to EC Safety Standards and Regulations.
Adding a monitor and some other accessories you can check the printing quality while you're loading balloons on the printing machine.
- Availability
- On request
- Print colors
- 1, 2

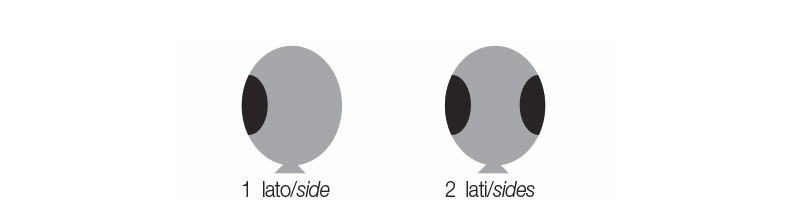

- Sides Printing
- From 1 to 2 sides
- Productivity per hour
-
One colour printing : 1800 pieces per hour
Two colors printing: 1600 pieces per hour
- Measures balloons
-
- 10, 12, 14 inch standard round balloons
- Size
- cm 240 x 220 x 170 h
- Weight
- 350 kg
- Drying
- Hot air - included
- Comments
- INFLATED BALLOON PRINTING PROCESS
VOLTAGE AS YOU NEED
- Air pressure
- 8 bar
- Air consumption
- 160 litres per minute
- Compressor
- Not included
With this machine can print …
Spare parts

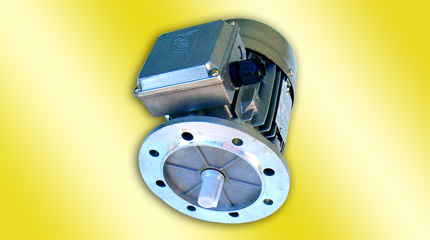

RF38-RA-01
DescriptionMotor

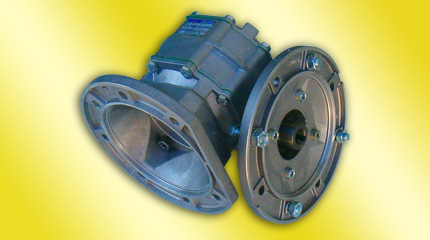

RF29-RA-01
DescriptionReducer

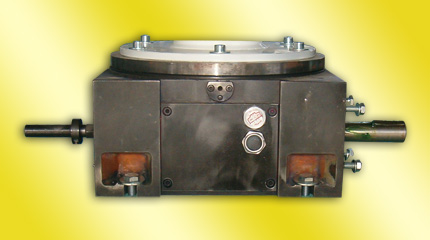

RF30-RA-01
DescriptionTurning base

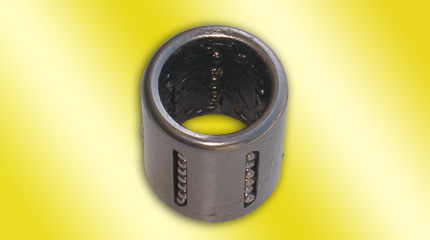

RF33-RA-01
DescriptionSliding Muff

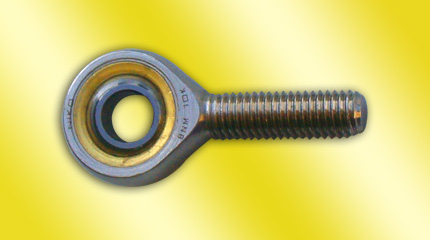

RF34-RA-01
DescriptionArticulated Head Ø 10

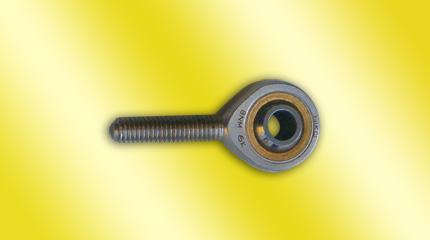

RF35-RA-01
DescriptionArticulaed Head Ø 6

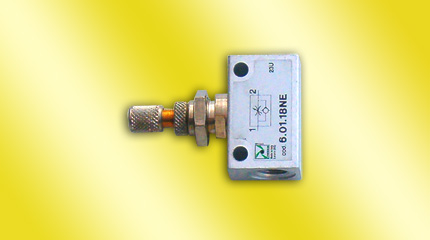

RF36-RA-01
DescriptionRegolator 1/8
RF36-RA-01
DescriptionRegolator 1/4

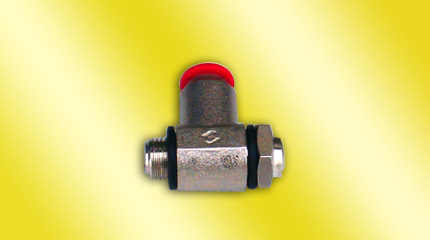

RF37-RA-01
DescriptionRegolatore 1/8 - 6
RF37-RA-01
DescriptionRegolator 1/4 - 8

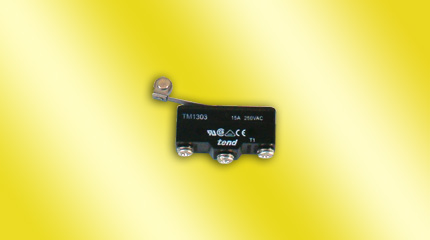

RF38-RA-01
DescriptionMicrocontact

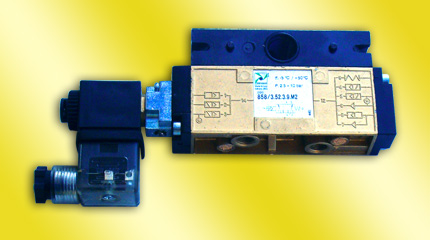

RF40-RA-01
DescriptionElectric valve for cylinder

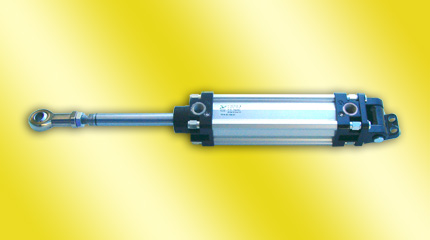

RF42-RA-01
DescriptionØ 32 Stroke 100

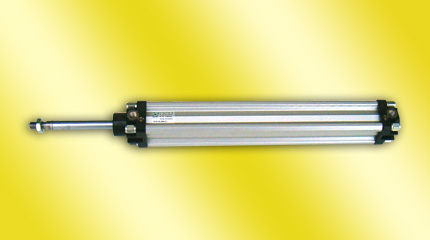

RF43-RA-01
DescriptionØ 32 Stroke 250

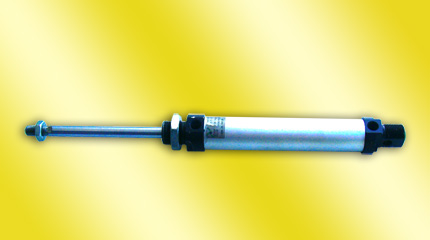

RF44-RA-01
DescriptionCylinder for balloon blocking

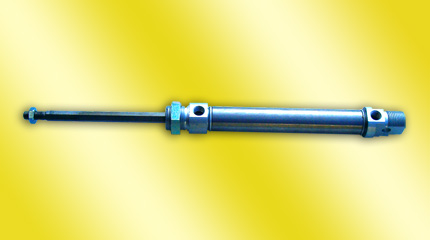

RF46-RA-01
DescriptionClamp cylinder

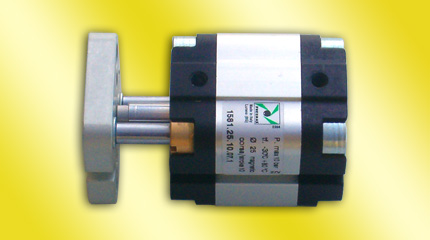

RF47-RA-01
DescriptionPiston for scraper movement

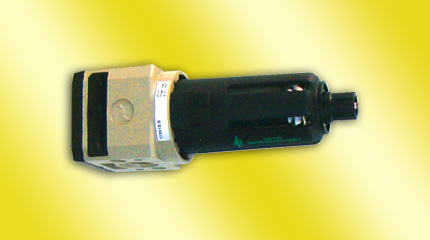

RF49-RA-01
DescriptionFilter 3/8

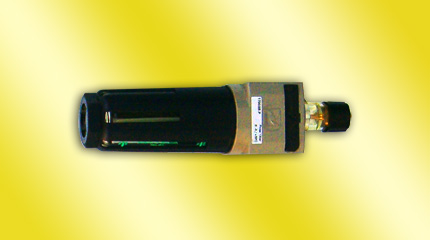

RF50-RA-01
DescriptionLubricator

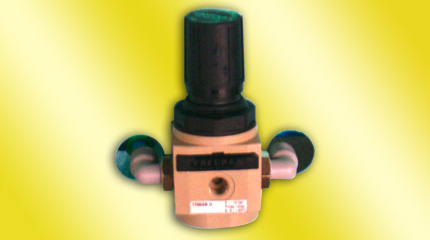

RF51-RA-01
DescriptionRegolator 1/4

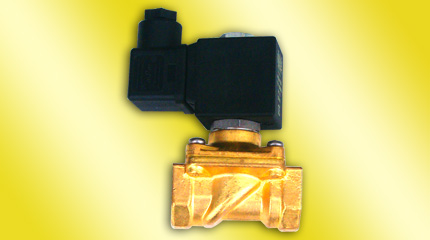

RF52-RA-01
DescriptionEletric valve for inflation

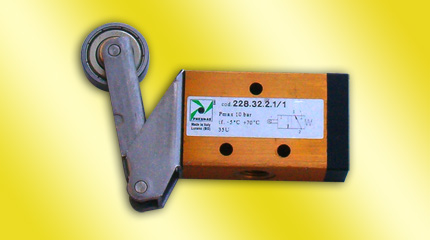

RF53-RA-01
Description3-way valve 1/8

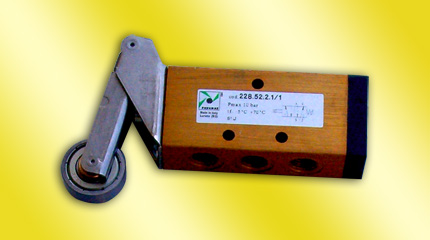

RF54-RA-01
Description5-way valve 1/8

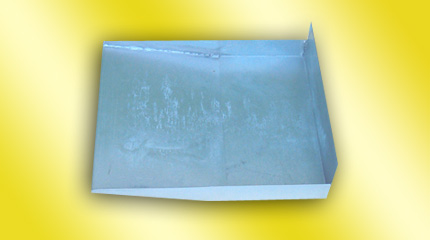

RF55-RA-01
DescriptionContainer

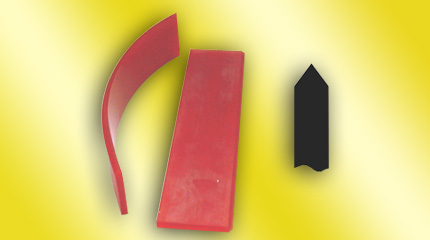

RF23-RA-01
DescriptionStraight scraper

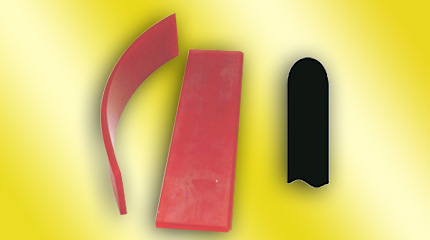

RF24-RA-01
DescriptionRound scraper

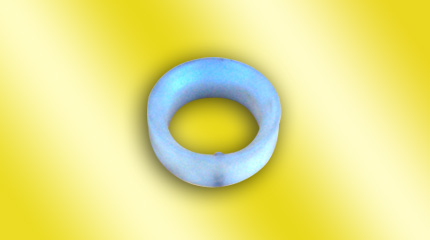

RF57-RA-01
DescriptionNylon balloon guide

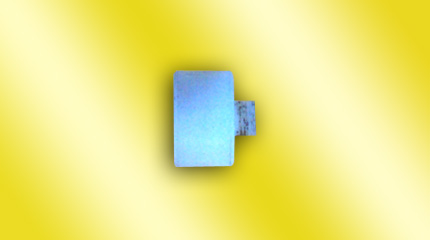

RF58-RA-01
DescriptionSpacer for balloon hook

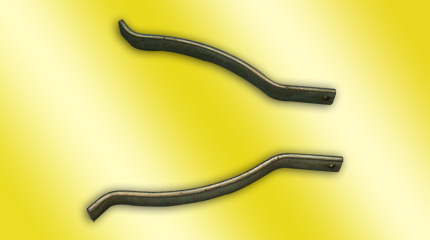

RF60-RA-01
DescriptionBalloon guide

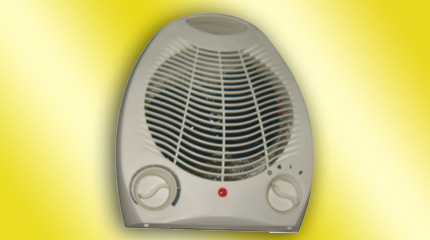

FAN
DescriptionHot air drying fan
